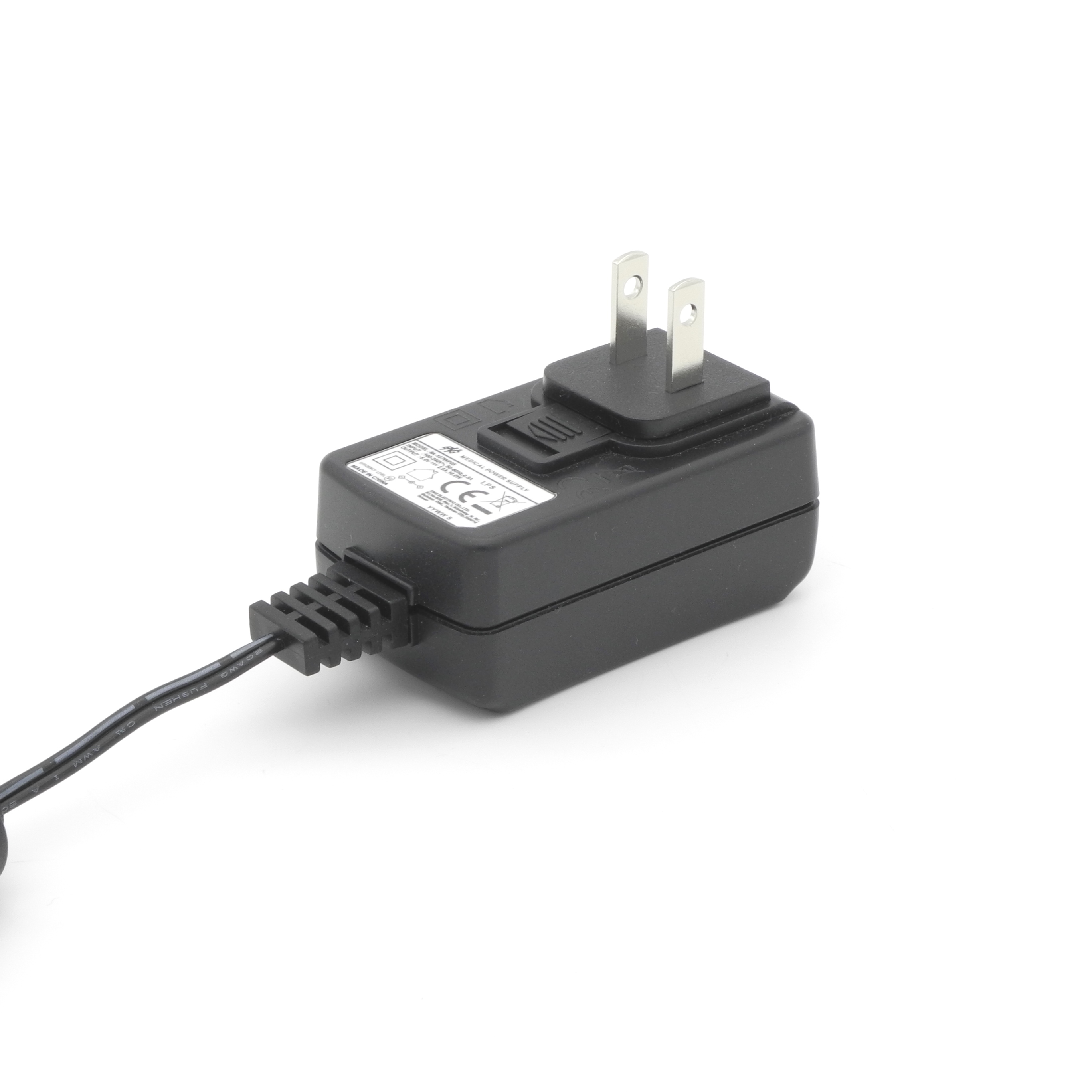

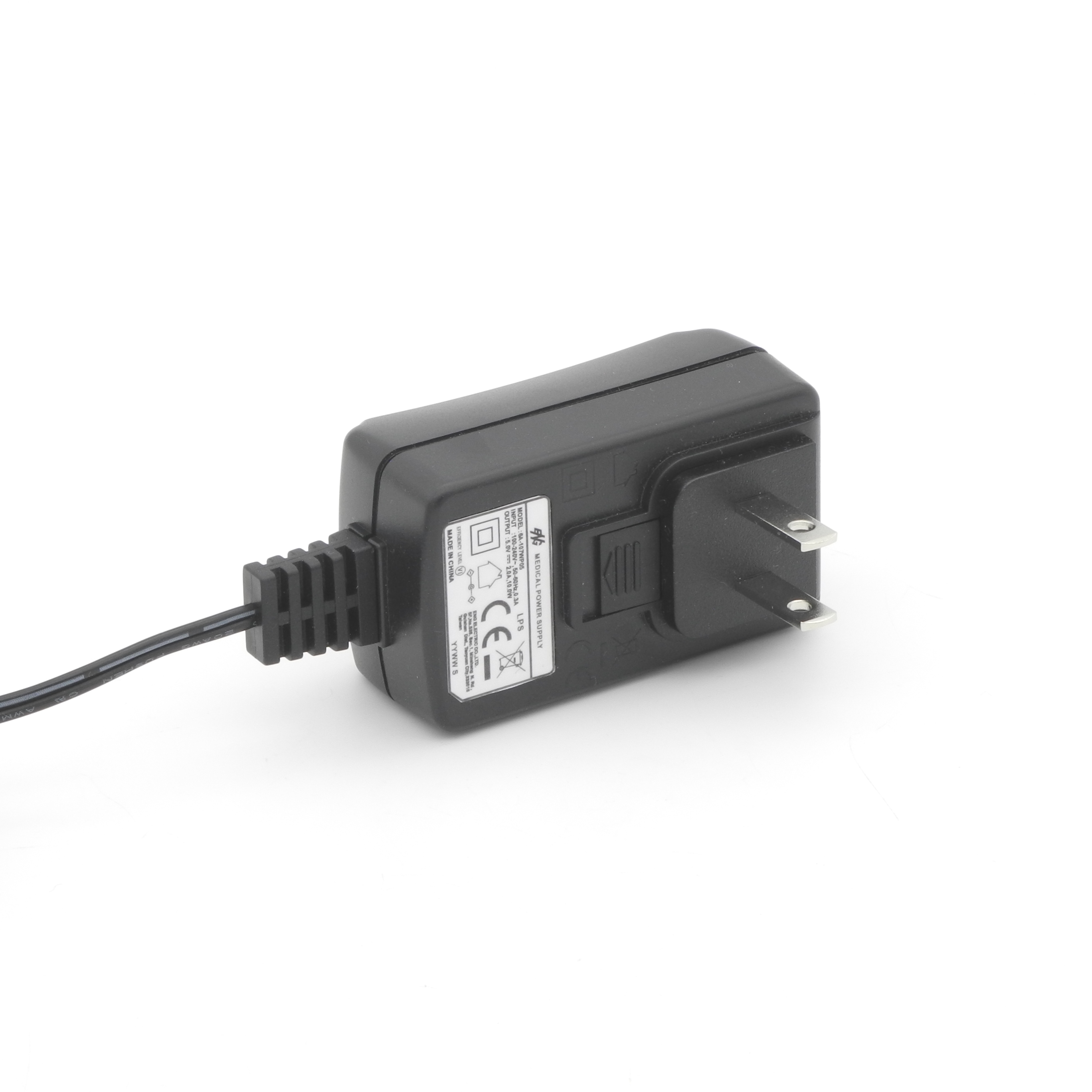

6A-107WP05
Wall Mount
72W
10.8-52.8V
Interchangeable Plug
IEC60601
Specification parameters
Input AC 90V~264V Universal Full Range
Protection OCP/OVP/SCP
Temperature Operating: 0~40℃;Storage: -10~+70℃
Humidity Operating: 20%~85%;Storage: 10%~95%(Non Condensing)
MTBF 50K Hours MIL-HDBK-217F @115VAC/ 230VAC Full Load Ambient : 25℃
Product Features
IEC/EN/UL/CUL 60601
■ Regulated Output With Low Ripple Noise
■ 100% burn in test
■ CEC,DoE Level Ⅵ,ErP Stage 2,CoC Tier 2,GEMS
■ WEEE / ROHS 2.0 / REACH 2.0
Compliance with safety regulations
